Dielectric Compositions for Aluminum JZ3003X

     LEED JZ3003X dielectric pastes are desiged to be used together to insulate type 3003 or 3103 aluminum substrates, and non-toxic element up to European RoHS environmental regulation.They mach with the TEC of aluminum substrate well. The total dielectric fired thickness must exceed 80 micrometers after printing three layer, the breakdown voltage can achieve 1800VAC, designed for aluminum substrate, heating element for aluminum substrate.

¡¡

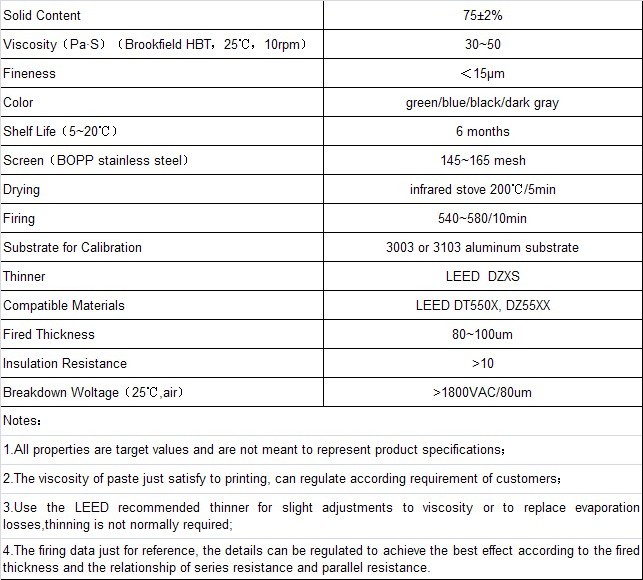

Paste Data

¡¡

Recommended Technical Information & Notice

Printing£ºIt is recommended the lustration grade of appliance and circumstance to be more than tem thousand degree, it should be guarantee that the room temperature and appliance temperaute remains 26¡À2¡æ during printing. Keep stir it slowly and fully before using. If take out of from icebox or icehouse firstly, please place it in the printing house until it return to room temperature , if add the thinner,should stir fully, or will affect performance of pastes.

Drying£ºIt can be dried both in infrared stove and rotary dry furnace, the peak temperature of drying is 250¡«300 degree centigrade, the drying time can be regulated according drying situation.

Firing£ºFiring is one of most imporant data for affecting the performance of paste. The best firing temperature should be regulated according the detailed machines so that can obtain the uniform,glossy fired film.

Thinning£ºJZ3003X composition is optimized for screen printing and thinning is not normally required.Use the LEED recommended thinner for laigh adjustments to viscosity of to replace evaporation losses. The use of too much thinner or the use of a non recommended thinner may affect the rheological behavior of the material and its printing chracteristics, and stir fully after thinning.

Compatibility£ºJZ3003X has good compatibilityes with LEED conductive paste DT550X and resistior paste DZ55XX.

Transportation and Storage£ºduring transportation and storage should protect against the tide and contamination.Containers may be stored in a clean, dry and stable environment at room temperature (between 5¡æ¡«20¡æ),with their lids tightly sealed.

¡¡

Precautions

     LEED JZ3003X dielectric paste is an environmental insulator material and non-toxic element up to European RoHS regulation and RoHS regulation.Harmful if swallowed inhaled when in use. Avoid contact with eyes, wash thoroughly after handling, and see doctor soon.

About LEED Electronic Pastes

     LEED Thick Film Paste Company is one of most researching competitive and economic powful suppliers. Since entered the electronic industry from 2001, to adopt the mathod of independent research and development and contacting with national university , are the supported project of ¡°863 plans¡± and National Innovation Fund about electronic paste, developed thick firm paste for stainless steel, palladium silver conductive paste and silver paste, silver paste for vehicle window defogging, ruthenate resistor paste, PTC linear thermistor paste, heat-drying conductive paste and adhesive series products£¬and established the production and testing line of solar cell, for researching the silicon solar cell aluminium paste, positive electrode paste and back electrode pastek, establish the same product condition and testing method with customers¡¯. LEED company has a perfect quality system ,got ISO9001 Quality Management System and ISO14001 Environmental Management System.
¡¡
