Dielectric pasteJZ4301

     LEED JZ4301 is dielectric paste for 430-type ferritic stainless steel which features excellent insulating property, small distortion, strong adhesive power, good printing performance and toxic element free up to European RoHS environmental regulation. LEED JZ 4301 and LEED DZ 430 XXXX Resistor paste, compatible perfectly with LEED DT430X conductor paste, are key materials for thick film resistors and heating element. It is recommended the lustration grade of appliance and circumstance to be more than one thousand degree.

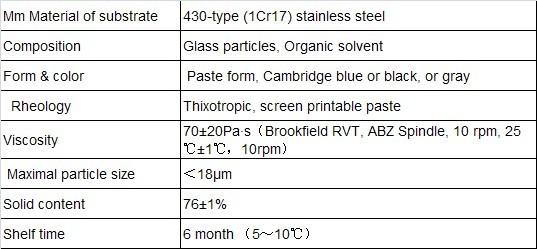

Paste data

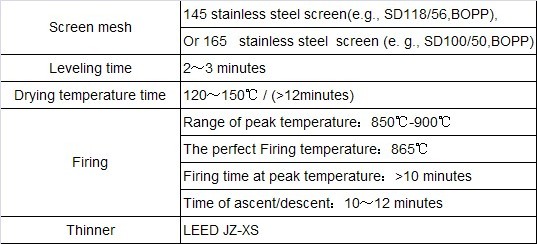

 Processing

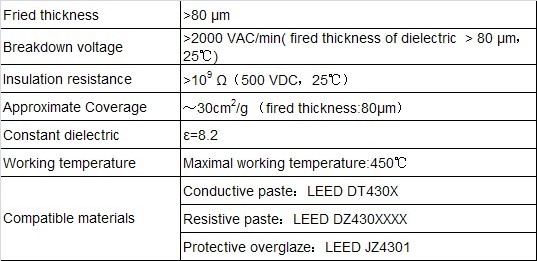

Typical properties

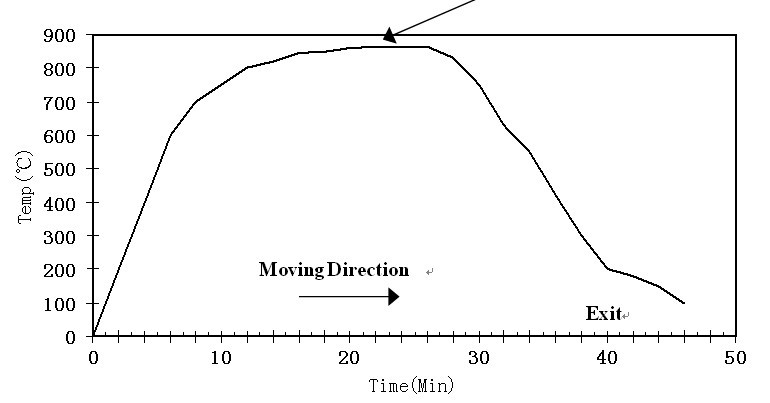

Typical firing curve

Notice of usage and storage:

1.The used material should be collected and sealed up alone. Don¡¯t mix with other untapped material.

2.Before using the paste, it is essential to take out of from icebox or icehouse firstly and place it at about 25¡æ. Keep stir it slowly and fully till the composition of this paste is uniform.

3.It should be guarantee that the room temperature and appliance temperature remains 26¡À2¡æ during printing.

4.Paste material placed on the screen should be moderate and added regularly when making screen-printing.

5.Dilute the paste moderately to recover the printing performance.

6.The storage temperature is recommended between 5 and 25¡æ. The shelf time is commonly 6 months.

7.Please test for products suitability before mass production to avoid causing unnecessary losses.
¡¡
